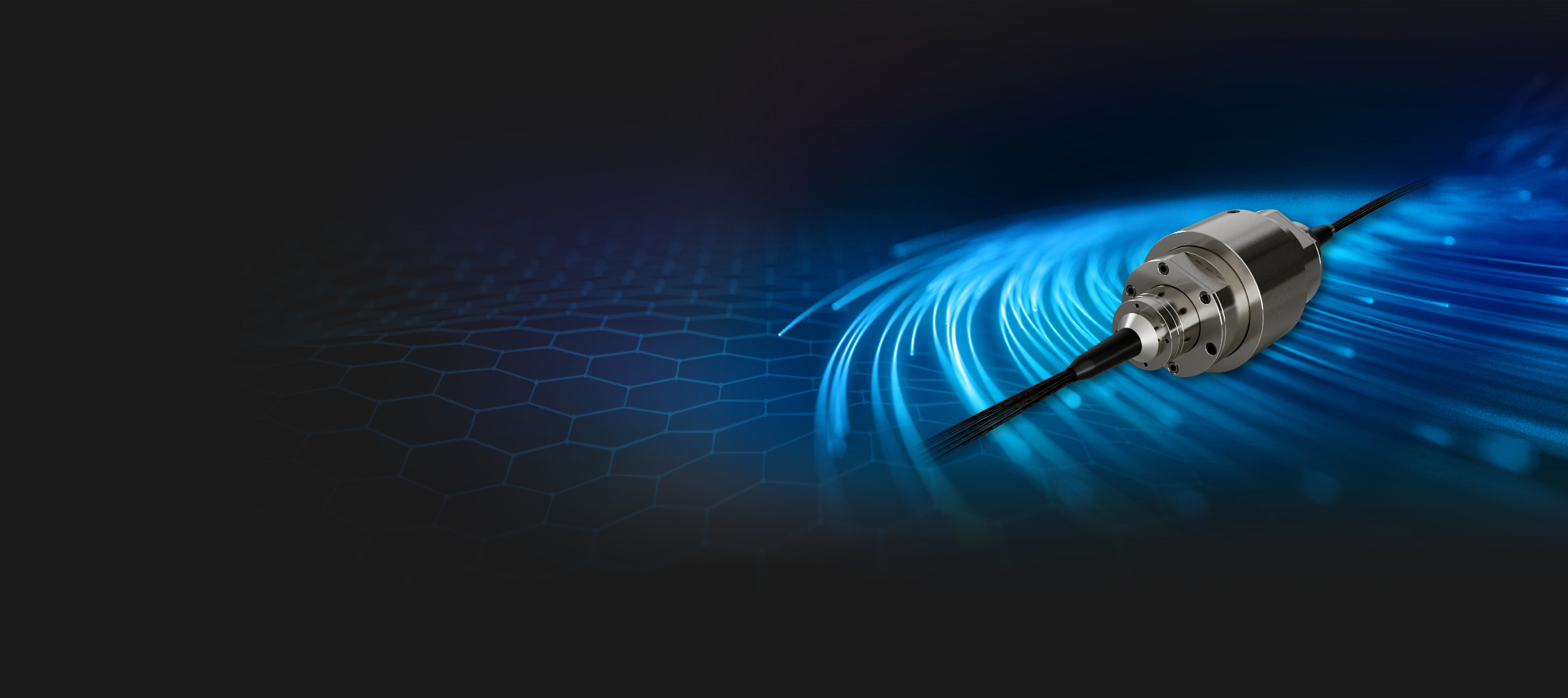

Multi-Channel Fiber Optic Rotary Joint
Up to 81 channels for single-mode and 31 channels for multimode applications
Základní informace
Kontakt
V případě technických dotazů nebo poptávky nás neváhejte kontaktovat
Obchodní oddělení
Tel.: +420 493 765 111
sales@sqs-fiber.cz
SQS multi-channel Fiber Optic Rotary Joints (FORJ) support both single-mode and multimode fiber configurations. They deliver stable optical performance with low insertion loss during continuous rotation, ensuring reliable signal transmission and long service life in demanding environments.
The stainless-steel housing, fiber length, mechanical protection, and connector interfaces can be adapted to specific application requirements. This makes SQS rotary joints a compact, durable, and reliable solution for optical signal transmission in rotating systems.
Highlights
- Multi-channel design: up to 81 channels (single-mode) and 31 channels (multimode)
- Low and stable insertion loss during continuous rotation
- High reliability and long operational lifetime
- Custom configurations tailored to application requirements
Applications
- Slip ring and rotary systems
- Medical imaging equipment
- Aerospace systems
- Defense technologies
Technické vlastnosti
| Fiber type | Single-mode | Multimode |
| Wavelength range [nm] | SM 1310/1550 | MM 850/1300 |
| Max. insertion loss [dB] | 3,5 | 3,5 |
| Max. insertion loss variation (during rotation) [dB] | 1,5 | 1,5 |
| Return loss [dB] | > 50 | > 50 |
| Max.optical power handling [mW] | 200 | 200 |
| Channels max. | 81 | 31 |
